Prevent Recurring Damage to Barriers
Patented Side Saddle Bracket™ #D885,868

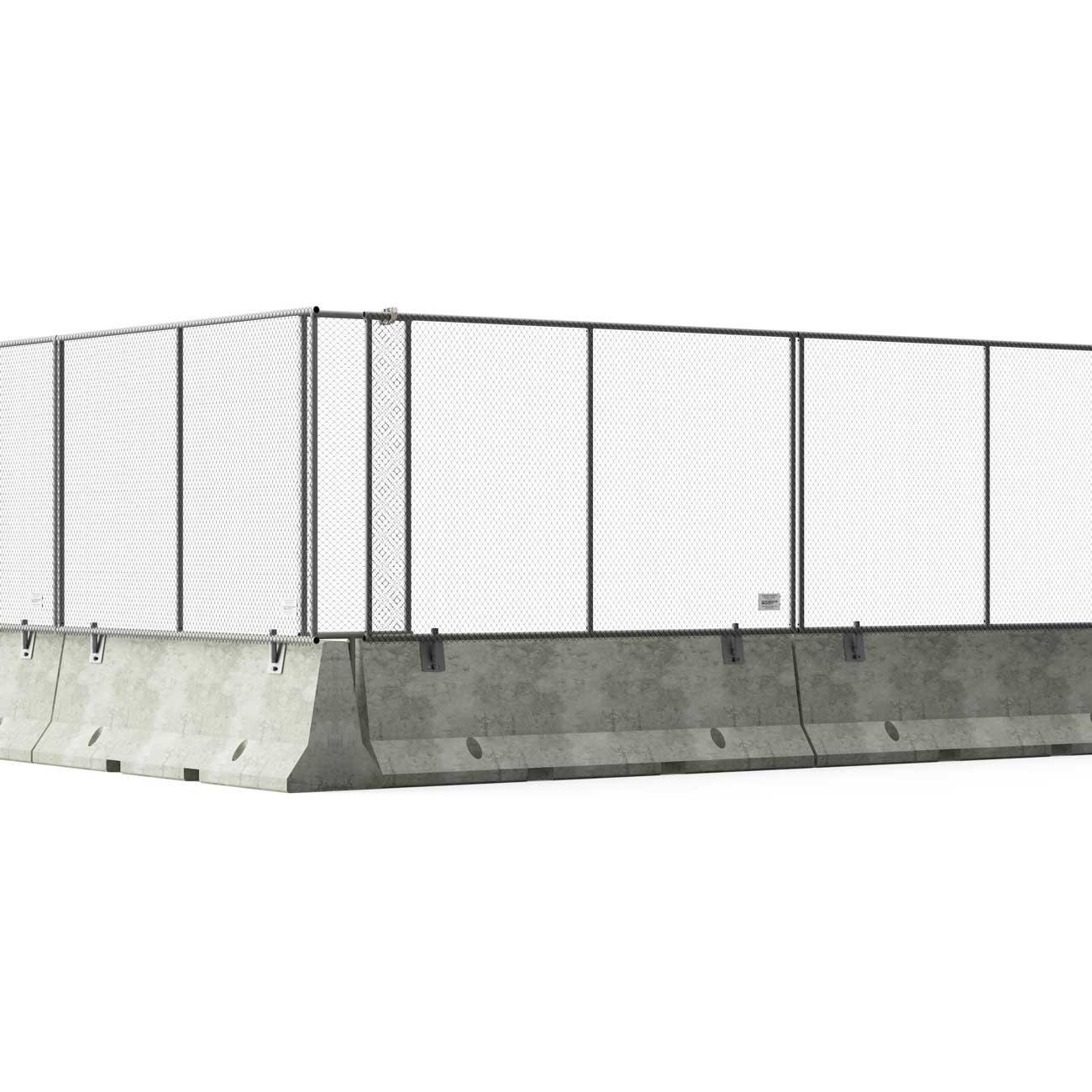

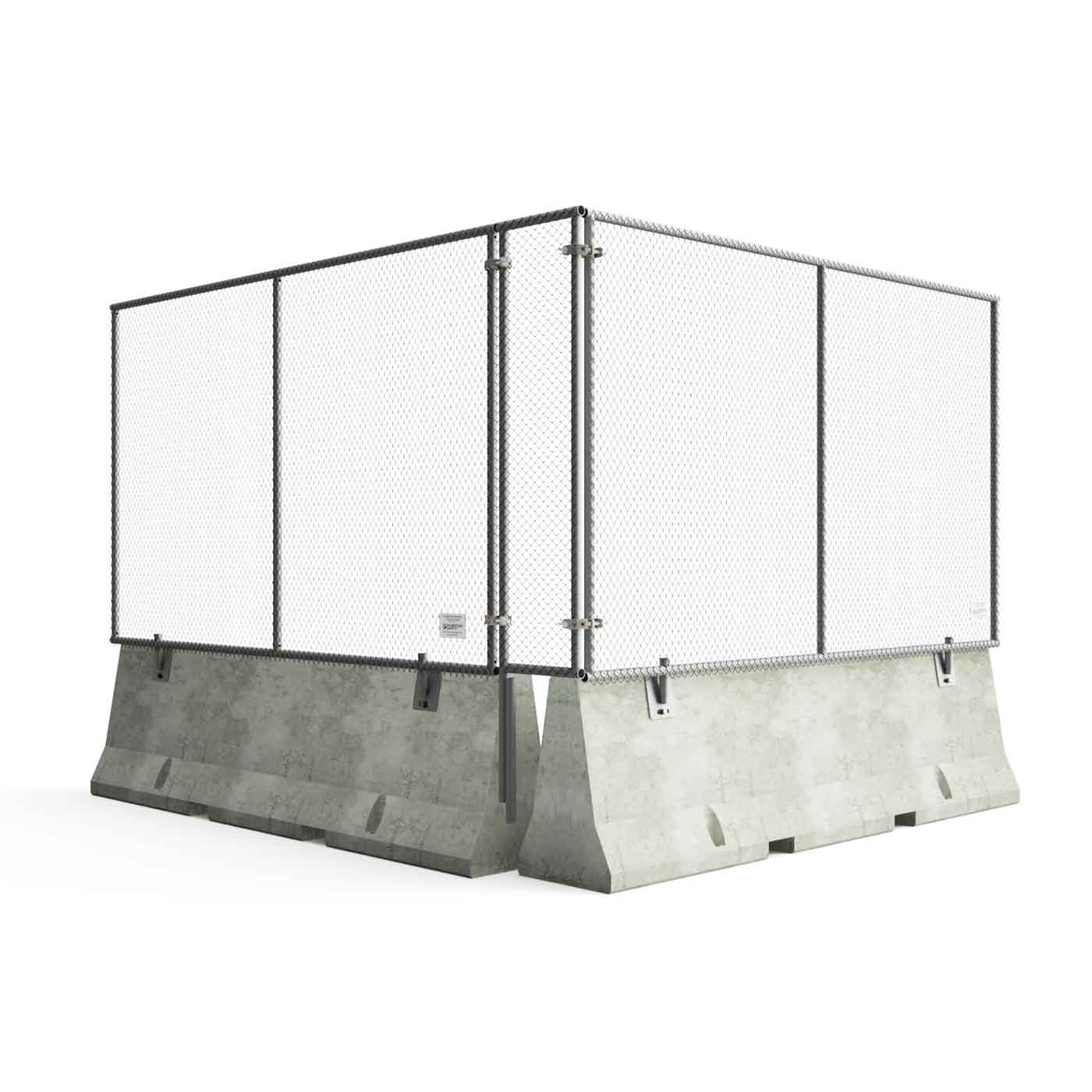

Designed to last 15+ years, this Construction-Grade™ panelized fence system offers non-penetrable security for construction sites with hot-dipped, 13-gauge, galvanized steel posts supporting all sides of the panel perimeter and center. Heavy duty chain link is applied with vertical tighteners. Individual panels mount tight to each barrier with the patented Side Saddle Bracket™. Construction access points can be created at any time by forking a barrier to a new location or utilizing our gate options.
Product Catalog
Barrier Fence Panel
HLM-BFP
1-5/8” O.D. x Galvanized 13 gauge tube with
9 gauge chain link
Optional:
Barbwire vertical
Barbwire at 45 degrees
Solar Light
Security Intelligence
Top Clamp HLM-BFTC
Privacy Screening
Custom Sizing Available
HLM-BFP106G Barrier Fence Panel 10′ x 6′ – Galvanized 154 lbs (generally in stock)
HLM-BFP108G Barrier Fence Panel 10′ x 8′ – Galvanized 195 lbs
HLM-BFP126G Barrier Fence Panel 12′ x 6′ – Galvanized 180 lbs
HLM-BFP1266G Barrier Fence Panel 12′-6″ x 6′ – Galvanized 185 lbs
Barrier Fence Panel Rack
HLM-BFPR10G
Barrier Fence Panel Rack 10′
Galvanized
Holds 20 Fence Panels (200 lf)
Fork Pockets
Panels Secured to Rack
Attachment Options
Patented Side Saddle Bracket™
Special Notes:
CUSTOMER APPROVED SHOP DRAWINGS REQUIRED PRIOR TO PRODUCTION.
Required Hardware Per Bracket (Not Included):
Qty 6—1/2-13×2” Drop-In Anchor
Qty 6—9/16” USS Flat Washer Zinc
Qty 6—1/2-13×1” Gr.5 Capscrew Zinc
Learn more: Side Saddle Bracket™
Access Gate
HLM-FPTG with Rolling Caster
For Use With Barrier Fence or Temporary Fence
Requires:
1 – HLM-FPT108G Fence Panel 10’ x 8’ – Galvanized or HLM-FPTG12812x8-Galv
1-HLM-BFGSP68G Gate Spacer Panels (If used with a concrete barrier)
1 – STG1.9x13Gx96 Vertical Post 8’ – Galvanized
3-HLM-FGHCZ Fence Gate Hinge Clamps
1 – C8 Caster 8”
(Other Sizes Available)
Personnel Gate
HLM-BFPG48G
For Use With Barrier Fence
4’ x 8’, Other Sizes Available
Galvanized – for use with Gate Spacer Panels – CLSDP Swivel Clamps
Fence Gate Hinge Clamp – Plated Set
HLM-FGHCZ
(requires 3 sets per gate panel)
Light Pole Bracket
HLM-BFLPB7
Barrier Light Pole Bracket 7″ (Other sizes available)
Light Pole
HLM-BFLPG
Barrier Fence Light Pole
Barrier Fence Gate Spacer Panel
HLM-BFGSP66G
(6″ top, 6′ panel) – Galvanized
Clamp On Light Coupler – Galvanized
HLM-LSCLG
For Use With Barrier Fence or Temporary Fence
Shown with: T-AHL-RD-DM Dual-Mode Solar Light – Red (sold separately)
Top Clamp Set
HLM-BFTC
For Use With Barrier Fence or Temporary Fence
Includes Hardware
Get Pricing
Find out how much you can save using the Hilmerson Safety Barrier Fence System™.
