Guardrail System Kits – Simplify Logistics, Maximize Efficiency & Space

Patented #10,597,057

We know that simple storage and inventorying is critical, so we worked closely with expert equipment and yard managers in the construction industry to design “guardrail kit systems” that are simple, versatile, and practical.

Hilmerson Safety Rail System™ Kits Nashville SC Stadium

Product Catalog

Safety Rail Mobile Cart & Kit

HLM-KIT

Penetrating Guardrail Anchored Base Kit Includes:

(1) Stackable Cart HLM-GRC10G

(20) 10ft Guardrail Panel w/ Toe Board HLM-GR10G

(21) Penetrating Anchored Base Plate HLM-GRBPXG

(42) Gravity Locking Pin GL

(25) Anchors (Box)

Hilti KH-EZ

Kit Specifications:

132” x 49” x 66”

Tare Weight: 740 lbs

Loaded Weight: 2563 lbs

Maximum Capacity: 2700 lbs

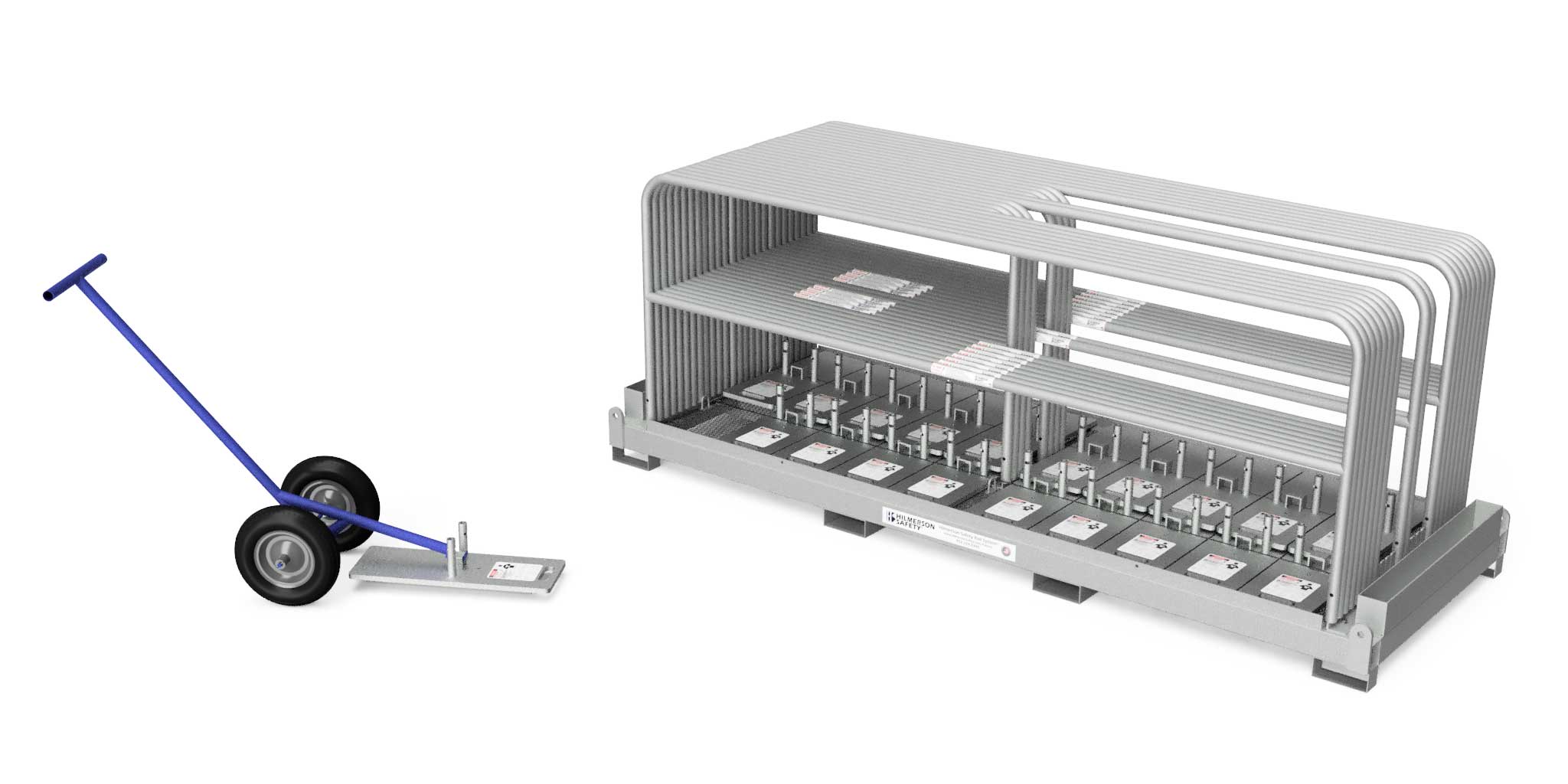

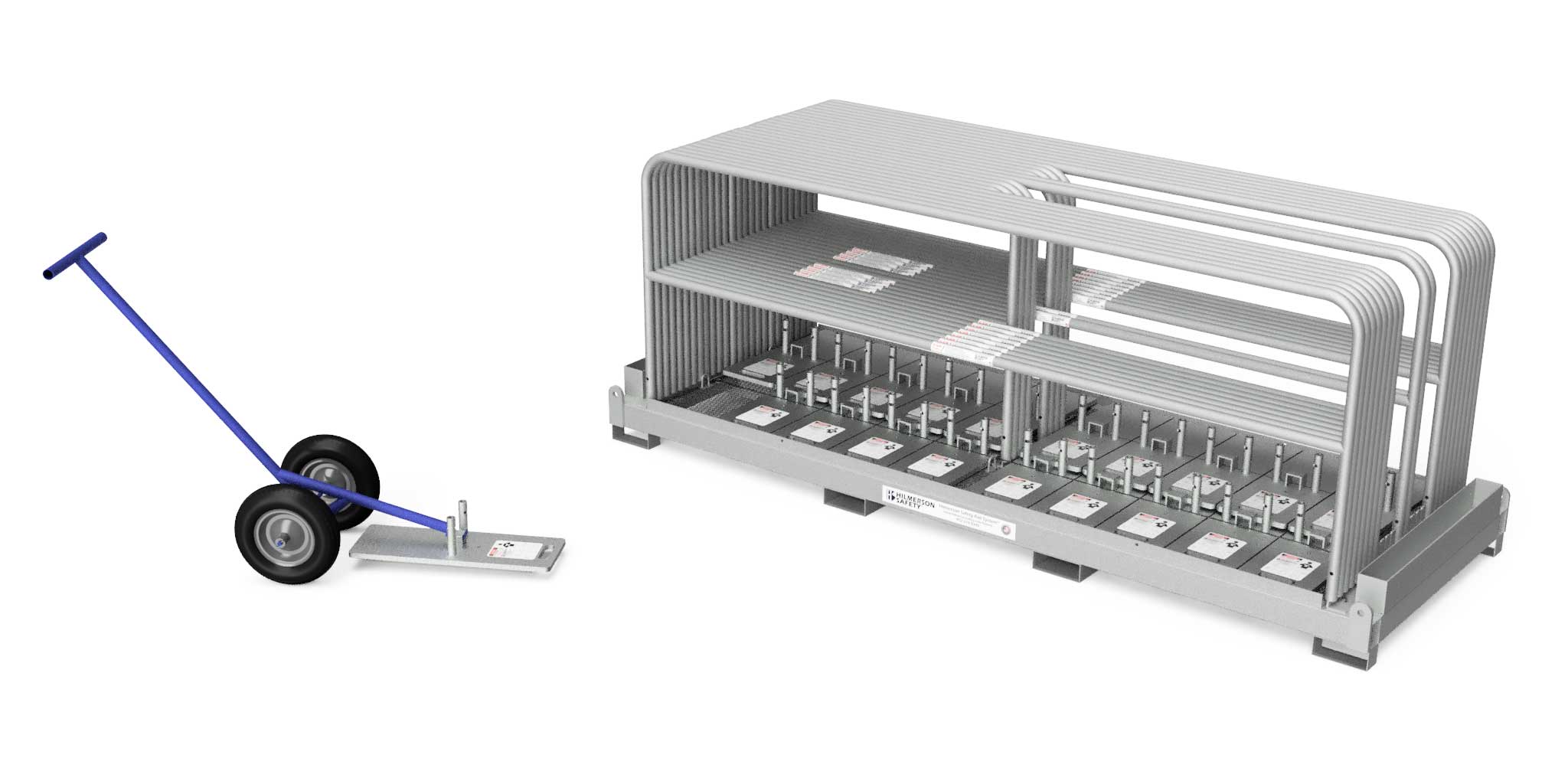

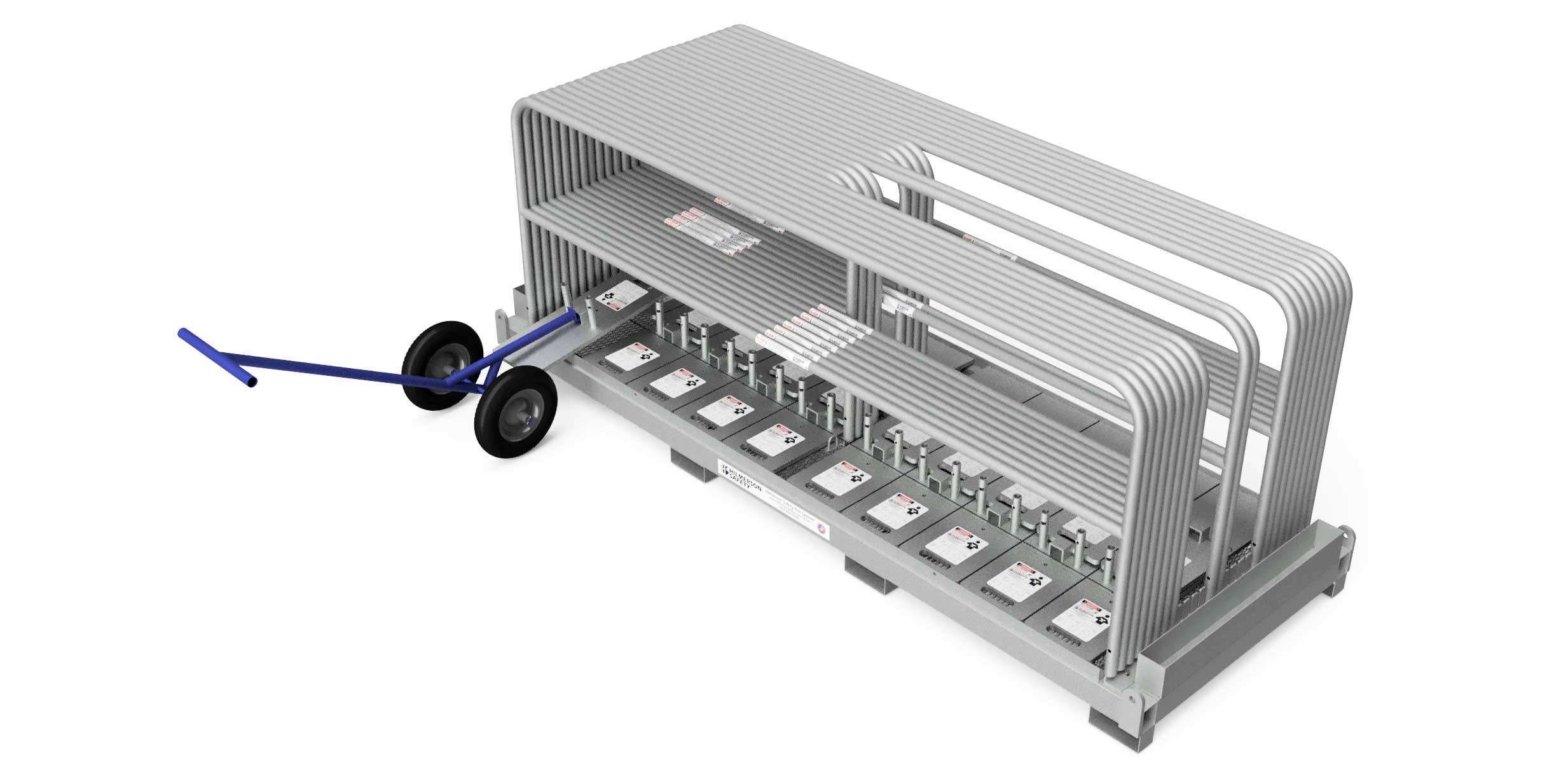

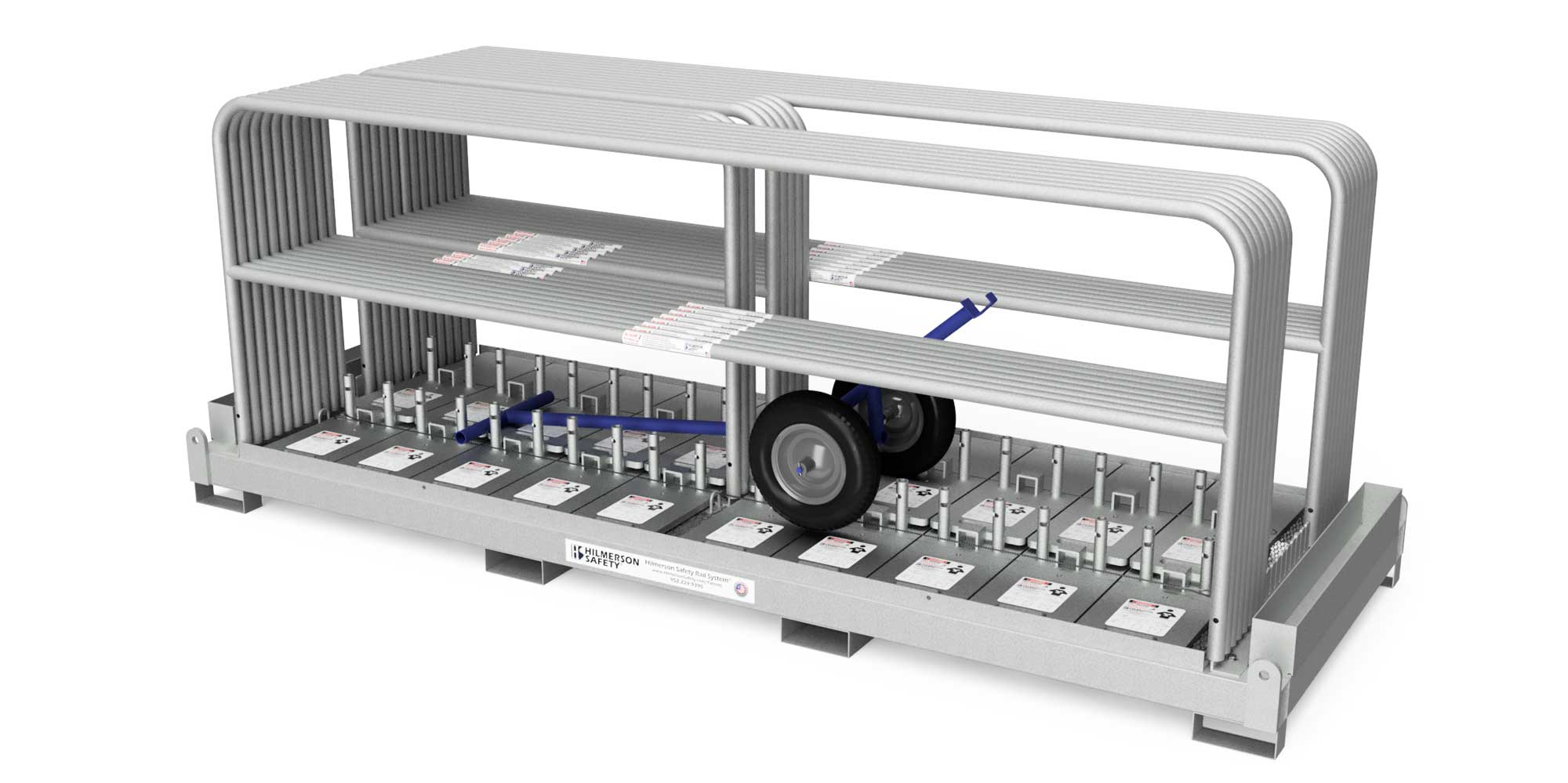

Safety Rail Rack & Kit

HLM-KITWBR

Non-Penetrating Guardrail Weighted Base Kit Includes:

(1) Non-Penetrating Weighted Base Rack HLM-BPHGRRG

(16) 10ft Guardrail Panel No Toe Board HLM-GR10NTG

(8) 5ft Guardrail Panel No Toe Board HLM-GR5NTG

(20) Non-Penetrating Weighted Base HLM-GRBPHXG

(40) Gravity Locking Pin GL

(1) Dolly

HLM-GRBPDL

Kit Specifications:

134” x 49” x 66”

Tare Weight: 477 lbs

Loaded Weight: 2778 lbs

Maximum Capacity: 3000 lbs

Safety Rail Panels

Safety Rail Panel – 10 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube with 11 gage toe board

HLM-GR10G

Safety Rail Panel 10 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube with 11 gage toe board. Weight: 67 lbs.

HLM-GR5G Safety Rail Panel – 5 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube

HLM-GR5G

Safety Rail Panel – 5 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube with 11 gauge toe board. Weight: 35 lbs.

Safety Rail Panel – 10 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube

HLM-GR10NTG

Safety Rail Panel – 10 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube. Weight: 41 lbs.

HLM-GR5NTG Safety Rail Panel – 5 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube

HLM-GR5NTG

Safety Rail Panel – 5 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube. Weight: 26 lbs.

Safety Rail Panel 5.5ft – 9ft: (Adjustable w/ integrated toe board) 1 ⅝” O.D. x Galvanized 13 gauge tube

HLM-GR9AG

Safety Rail Panel 5.5ft – 9ft: (Adjustable w/ integrated toe board) 1 ⅝” O.D. x Galvanized 13 gauge tube. Weight: 77 lbs.

Safety Rail Panel – 10 ft: 1 ⅝” O.D. x Galvanized 13 gauge tube

HLM-GR9ANTG

Safety Rail Panel 5.5ft – 9ft: (Adjustable w/ no toe board) 1 ⅝” O.D. x Galvanized 13 gauge tube. Weight: 72 lbs.

Clamp-On Adjustable Guardrail Gate -Guardrail Kits and Applications Hilmerson Safety Rail System™

GRG-CLA2G

Clamp-On Adjustable Guardrail Gate: fits openings 36″ – 54″, Schedule 80 pipe.

Clamp-On Adjustable Guardrail Gate: fits openings 36″ – 54″, Schedule 80 pipe
Clamp-On Adjustable Guardrail Gate: fits openings 36″ – 54″, Schedule 80 pipe

Attachment Options

Penetrating Guardrail Anchored Base Plate

HLM-GRBPXG

Penetrating Guardrail Anchored Base Plate: 3/8” x 8” x 11” ASTM-A-36 Grade Steel, Galvanized. Weight: 11 lbs.

Non-Penetrating Guardrail Weighted Base Plate

HLM-GRBPHXG

Non-Penetrating Guardrail Weighted Base Plate: ¾” x 11 x 30” ASTM-A-36 Grade Steel, Galvanized. Weight: 70 lbs.

Multi-Use Stair/Slab Grabber Clamps

HLM-SSGG

Multi-Use Stair / Slab Grabber Clamps & Swivels up to 50 Degrees. Patented. Weight: 36 lbs.
Learn more: Stair / Slab Grabber

HLM-GRPC2PG Parapet Wall Mount Clamp: Dual post adjusts 6-18”. Non-penetrating. Galvanized.

HLM-GRPC2PG

Parapet Wall Mount Clamp: Dual post adjusts 6-18”. Non-penetrating. Galvanized. Weight: 25 lbs.
Learn more: Parapet Wall Mount Clamp

Hilmerson Safety® Guardrail Wall Mount Plate

HLM-GRWMG

Guardrail Wall Mount: 3/8” x 11’ x 13 ½” ASTM-A-36 Grade Steel, Galvanized. Weight: 15 lbs.
Learn more: Guardrail Wall Mount

Stair / Slab Grabber Post w/Cap

HLM-SSGPG

Stair / Slab Grabber Post w/Cap

Tube-STG 1 5/8 OD x 13Gx 48”

Weight: 9 lbs

Tube & Swivel Clamps Hilmerson Safety Rail System

Tube & Swivel Clamps

Tube-STG 1.9 x 13 Gauge Galvanized Steel Tube

Clamp-CLSDP

HLM-KITWBR - 8" Caster

HLM-KITWBR

8” Caster

Load Capacity 500 lbs.

Weight: 13 lbs

Slab/Parapet Perimeter Post

SPPP-1

Available in Galvanized or Powder Coat Blue

Base Camp swivels to adjust from a slab to a parapet in seconds

Part #: SPPP
Description: Slab/Parapet Perimeter Post
Weight: 31.0 lbs.

Base Clamp Adjusts From 0′ – 27 1/4″

SPPP-2 Slab/Parapet Perimeter Post

SPPP-2

Available in Galvanized or Powder Coat Blue

Base Camp swivels to adjust from a slab to a parapet in seconds

Part #: SPPP
Description: Slab/Parapet Perimeter Post
Weight: 31.0 lbs.

Base Clamp Adjusts From 0′ – 27 1/4″

Tube Clamp Slab/Parapet Perimeter Post

SPPP

Available in Galvanized or Powder Coat Blue

Base Camp swivels to adjust from a slab to a parapet in seconds

Part #: SPPP
Description: Slab/Parapet Perimeter Post
Weight: 31.0 lbs.

Base Clamp Adjusts From 0′ – 27 1/4″

Temporary Guardrail Configurations for Leading Edges, Stairs, Slabs & Rooftops

Configurations vary based on stair dimensions

Weighted Base Storage Pallet

Guardrail Weighted Base Plate Storage Pallet
Storage Pallet: Capacity 20 Plates, Galvanized

HLM-BPHPSG

Guardrail Weighted Base Plate Storage Pallet: Capacity 20 Plates, Galvanized

Pallet Specifications:

40” x 18” x 49”
Tare Weight: 158 lbs Loaded Weight: 1558 lbs Maximum Capacity: 3150 lbs

Watch Video: Loading Installations HLM-BPHPSG

Mobile Movers

SHORT DOLLY WITH BASE Guardrail Weighted Base Dolly
Guardrail Weighted Base Dolly: 1 ⅝” - Guardrail Kits and Applications Hilmerson Safety Rail System™

HLM-GRBPDL or HLM-GRBPDS

Guardrail Weighted Base Dolly: 1 ⅝” O.D. 13 gauge tube – Powder Coated

Kit Specifications:

134” x 49” x 66”
Tare Weight: 477 lbs Loaded Weight: 2778 lbs Maximum Capacity: 3000 lbs

Short Arm Dolly:

1 5/8” O.D. x 13 gauge tube, powder coated
(24 lbs)

Long Arm Dolly:

1 5/8” O.D. x 13 gauge tube, powder coated
(32 lbs)

Accessories

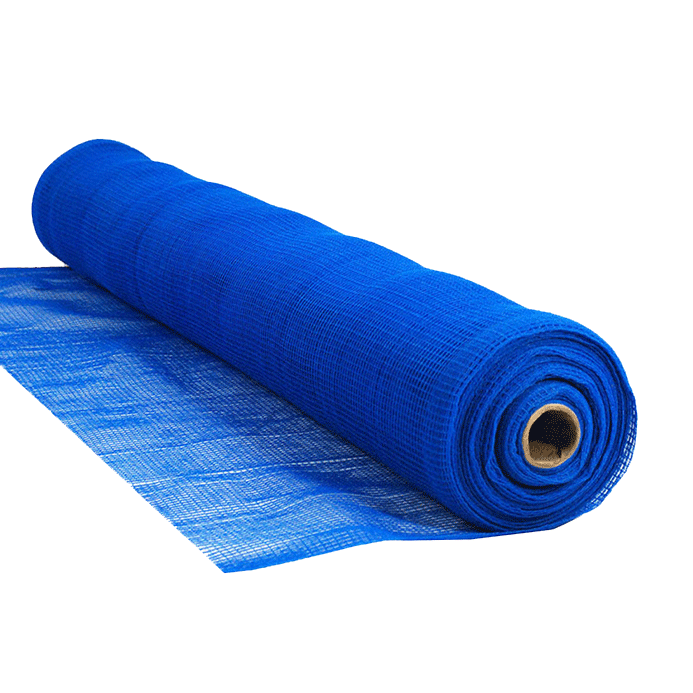

Safety Debris Net Hilmerson Safety - Guardrail Kits and Applications Hilmerson Safety Rail System™

SN-04150-BLU-FR

Safety Debris Net: 48″ x 150′ roll – blue (other colors available)
Custom printed safety debris net available by request

Safety Debris Net: 48″ x 100′ roll

4100204

Safety Debris Net: 48″ x 100′ roll – blue (other colors available)

4100205

Safety Debris Net: 66″ x 100′ roll – blue (other colors available)

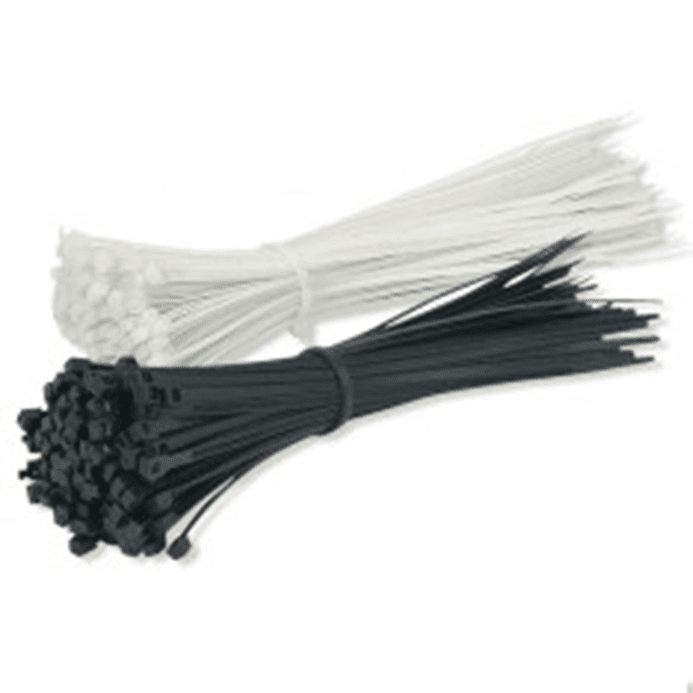

Nylon Cable Ties Hilmerson Safety - Guardrail Kits and Applications Hilmerson Safety Rail System™

A-CT11B

11″ Nylon Cable Ties: black – 1,000 per case

A-CT14B

14″ Nylon Cable Ties: black – 1,000 per case

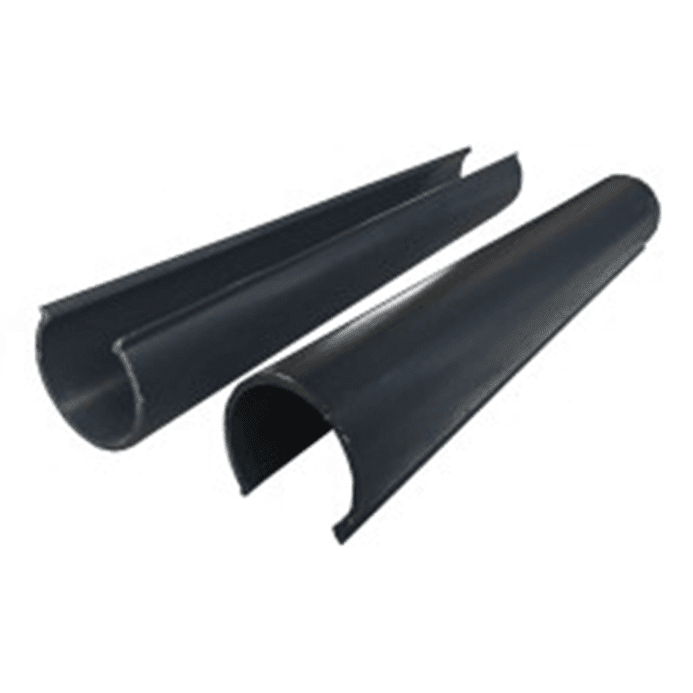

Eagle Wind Clips Hilmerson Safety - Guardrail Kits and Applications Hilmerson Safety Rail System™

A-WINDCLIP

Wind Clips: black – 100 per case

Fasteners & Locking Pins

Gravity Locking Pins Hilmerson Safety Rail System

GL

Gravity Locking Pins: Zinc-plated, self-locking ⅜” x 1 ⅝”

Hilti Anchor Hilmerson Safety Rail System

Hilti  KH-EZ

Anchor: ½” x 3½”

Installation Instructions

Spanner Hilmerson Safety Rail System

HLM-RS3G (22”-34”)

HLM-RS5G (34”-58”)

Spanners: Outer Tube – O.D. 1.625” – 14 Gauge. Inner Tube – O.D. 1.325” – 13 Gauge.
